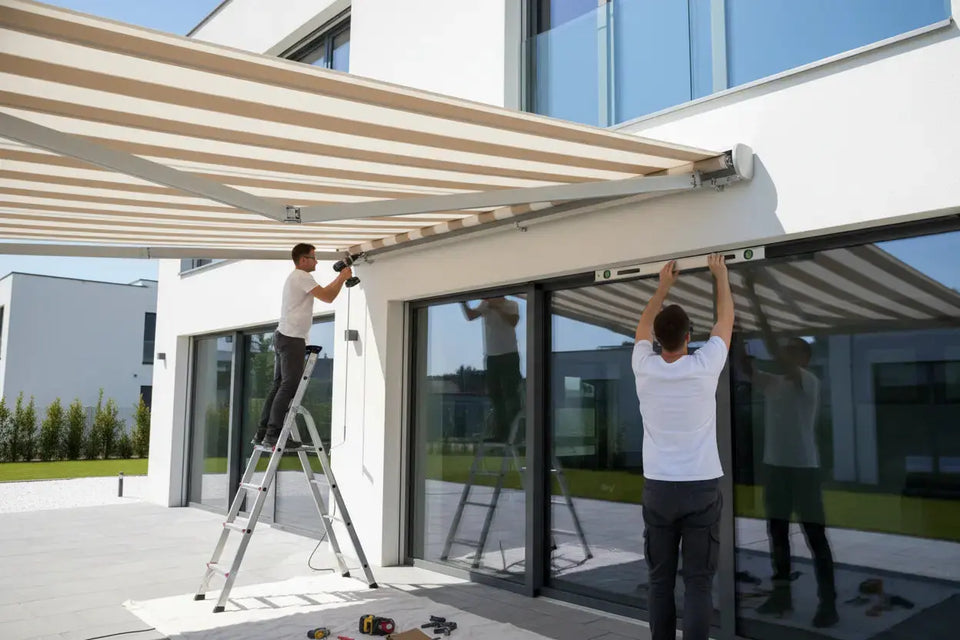

Professional Installation Guide: Aluminum Retractable Awnings

Complete Installation Guide for Aluminum Retractable Awnings

Installing a premium aluminum retractable awning requires careful planning and precision. This comprehensive guide walks you through the entire process, from site assessment to final testing.

Pre-Installation Requirements

Site Assessment

• Wall Structure: Ensure mounting surface can support 150-200 lbs minimum load
• Electrical Access: 110V outlet within 6 feet for motorized models
• Clearance: Minimum 8 inches above windows/doors when retracted
• Projection Space: Verify no obstructions in extension path

Tools & Materials Needed

• Power drill with masonry bits (for brick/concrete)
• Level (minimum 4-foot)
• Measuring tape and chalk line
• Socket wrench set
• Ladder or scaffolding (rated for 300+ lbs)
• Stud finder (for wood mounting)
• Safety equipment: gloves, safety glasses

Step-by-Step Installation Process

Step 1: Mounting Bracket Placement (30-45 minutes)

1. Locate wall studs or use concrete anchors for masonry
2. Mark bracket positions - typically 6-8 feet apart for standard awnings
3. Use level to ensure brackets are perfectly horizontal
4. Pre-drill pilot holes to prevent wall cracking

Step 2: Secure Mounting Brackets (20-30 minutes)

1. Install lag bolts or concrete anchors (minimum 3/8" diameter)
2. Torque to manufacturer specifications (typically 25-30 ft-lbs)
3. Double-check level before final tightening
4. Test bracket stability with firm pressure

Step 3: Awning Assembly (45-60 minutes)

1. Carefully lift awning cassette onto brackets (2-person job)
2. Secure with provided bolts - hand-tighten first
3. Verify alignment before final tightening
4. Connect motor wiring following electrical diagram

Step 4: Electrical Connection (Motorized Models)

1. Turn off power at circuit breaker
2. Connect motor to power supply per wiring diagram
3. Install wall switch or remote receiver
4. Test operation before securing wire covers

Step 5: Final Adjustments & Testing

1. Extend awning fully - check for smooth operation
2. Adjust pitch angle (typically 10-15 degrees for drainage)
3. Test retraction - should be smooth and complete
4. Verify all bolts are tight and covers are secured

Common Installation Challenges

Uneven Wall Surfaces

Use shims or spacers to create level mounting plane. Never force brackets to conform to uneven surfaces.

Brick or Stone Facades

Use expansion anchors rated for 500+ lbs pull-out strength. Avoid mortar joints - anchor into brick/stone body.

Stucco Walls

Drill through stucco into structural wall. Use washers to distribute load and prevent stucco cracking.

Post-Installation Care

• First 48 Hours: Avoid full extension to allow mounting hardware to settle
• Weekly: Inspect fabric tension and bracket tightness
• Monthly: Clean fabric with mild soap solution
• Seasonally: Lubricate moving parts and check motor function

When to Call a Professional

While many homeowners can install awnings, consider professional installation if:

• Wall structure is uncertain or requires reinforcement
• Electrical work exceeds basic plug-in connection
• Awning width exceeds 16 feet (requires specialized equipment)
• Installation is above second story
• Local building permits are required

Warranty Considerations

Important: Improper installation may void manufacturer warranty. Always:

• Follow manufacturer's installation manual exactly
• Use only provided or specified hardware
• Document installation with photos
• Register product within 30 days of installation

Need Professional Installation?

Our certified installation partners serve Australia and Europe with turnkey installation services. Contact us for a free site assessment and installation quote.

Installation time estimates are for standard residential applications. Commercial installations may require additional time and specialized equipment.
